DAIKO

D1000-10K-250A-4.5T-SS-GR

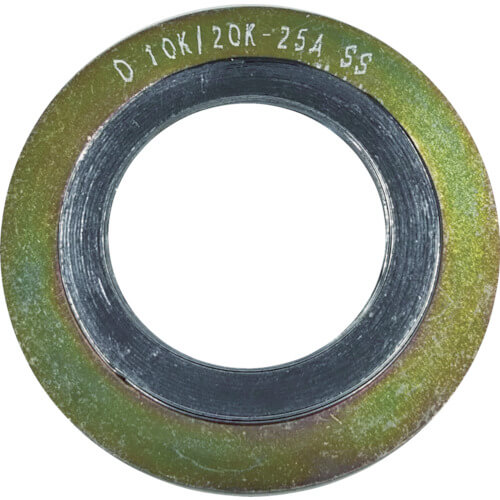

Graphite Spiral Gasket

มีค่าขนส่ง
฿2,564
฿3,076
Brand DAIKO
Part Number D1000-10K-250A-4.5T-SS-GR
Order Code 115-2859
Stock in Thai 0
Stock in Japan 0
Lead Time โปรดติดต่อเจ้าหน้าที่
วิธีการนำเข้า ทางแอร์
Last Updated กุมภาพันธ์ 21, 2024
  • A high performance semi-metallic gasket designed to be used for high temperature and high pressure.
  • Not easily affected by temperature changes. It demonstrates excellent sealing property under harsh conditions as in heat cycles caused by high and low temperatures
  • Tightening surface pressure control as in joint sheets is not required.
  • A spiral type gasket that uses graphite (expanded graphite material)tape as a filler material.
ข้อมูลสินค้า
  • Nominal Diameter (A) : 250
  • Nominal Diameter (B) : 10
  • Inner Diameter (mm) : 278
  • Outer Diameter (mm) : 332
  • Thickness (mm) : 4.5
  • Working Pressure (K) : 10
  • Working Temperature Range : -270degrees to 450degrees
วัสดุ
  • Seal Part : Expanded graphite filler material, SUS-based hoop material
  • Metal Protection Part : Outer ring SS400
น้ำหนัก 509 g
การใช้งาน
  • From general-purpose piping to areas where a high temperature and high pressure flange is applied.
  • ประเทศที่ผลิต Japan
    ข้อมูลจากผู้ผลิต DAIKO D1000-10K-250A-4.5T-SS-GR (ลิงค์นี้จะพาคุณไปสู่เว็บไซต์ภาษาญี่ปุ่น)
    Brand Category DAIKO
    Product Category ปั๊ม / วาล์ว / อุปกรณ์ก่อสร้าง อุปกรณ์ประปา ประเก็น ประเก็น
