YODOGAWA

YMS20JA

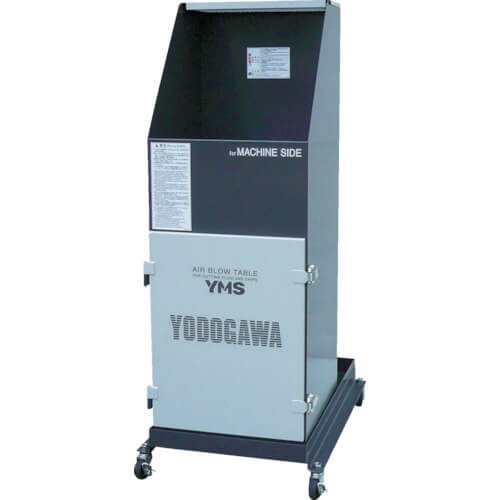

Air Blow Table For Cutting Fruid and Chips

มีค่าขนส่ง 100V
฿69,444
฿83,333
Brand YODOGAWA
Part Number YMS20JA
Order Code 467-5126
Stock in Thai 0
Stock in Japan 0
Lead Time โปรดติดต่อเจ้าหน้าที่
วิธีการนำเข้า ทางเรือ
Last Updated กุมภาพันธ์ 21, 2024
  • The oil and cut powder that are scattered when blowing air from the sides of machine tools are sucked together.
  • Performance is not reduced when wet and has an built-in special filter that can be refreshed.
  • The bottom part of the main body is equipped with a liquid collection tank with a drain plug.
  • The main section and parts of the main body have been treated for simple corrosion resistance, and an oil-resistant rubber part is adopted.
  • The iron hood does not get damaged easily and has excellent durability.
  • Casters are attached for easy installation next to machine tools, improving the efficiency of air blowing work.
ข้อมูลสินค้า
  • Power (V) : Single Phase 100
  • Output (kW) : 0.2
  • Dust Collection Capacity (L) : 13
  • Air Volume ([[M3]]/min) (50/60Hz) : 6.5/8
  • Noise Level (dB (A)) (50/60Hz) : 66/68
  • Main Body Dimension (mm)W x D x H : 486 x 730 x 1208
  • Standard Electric Consumption Rate : 5.4 yen/h
  • Front opening/closing hood
  • 50/60Hz dual purpose
  • Dust Removal Method Type : Manual
น้ำหนัก 40kg
การใช้งาน
  • Optimum for scattering prevention during air blow work around machine tools.
  • Optimum for work that requires a lot of processing such as tapping center and NC.
  • คำเตือน
      <li>Cutting oil with a flash point of 120°C or less and cleaning solution with a flash point of 135°C or less cannot be sucked.</li> <li>Cannot be used if the workpiece and cutting oil can turn into a dangerous substance when combined.</li> <li>Please inquire if there is a likelihood that the cutting oil may putrefy.</li> สินค้ารายการนี้สำหรับไฟฟ้า 100V ซึ่งจำเป็นต้องใช้หม้อแปลงไฟฟ้า
    ประเทศที่ผลิต Japan
    ข้อมูลจากผู้ผลิต YODOGAWA YMS20JA (ลิงค์นี้จะพาคุณไปสู่เว็บไซต์ภาษาญี่ปุ่น)
    Brand Category YODOGAWA
    Product Category พัดลม / เครื่องทำความเย็น / โบลเวอร์ เครื่องเป่าลม / เครื่องดูดฝุ่นระบบอุตสาหกรรม ระบบกำจัดฝุ่น 集じん機(作業台付)
