NITTO KOHKI

ARA-100A 220-240V (CE)

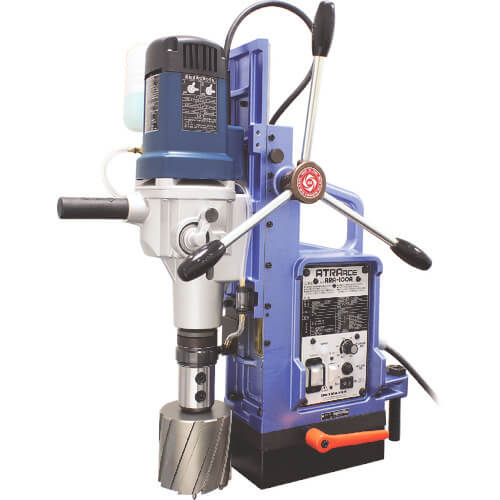

Atra Ace Portable Magnetic Drilling Machine

มีค่าขนส่ง
฿327,545
฿393,053
Brand NITTO KOHKI
Part Number ARA-100A 220-240V (CE)
JAN Code 4992338648336
Order Code 495-7733
Stock in Thai 0
Stock in Japan 0
Lead Time โปรดติดต่อเจ้าหน้าที่
วิธีการนำเข้า ทางเรือ
Last Updated กุมภาพันธ์ 21, 2024
  • A dual purpose type of a jetbroach and twist drill.
  • The feed handle can be installed on both the left side and the right side.
  • Fine adjustment of the drilling position is possible (front/back 20mm, left/right 30°).
  • 2-step variable speed and rotation speed adjustment is possible.
  • Equipped with a slow start function.
ข้อมูลสินค้า
  • Max Hole Drilling Capacity (mm) : 17.5 to 100
  • Max Board Thickness (mm) : 75
  • Stroke (mm) : 296
  • Magnet Dimension (mm) : 110X220
  • No Load Speed (min[[UE-1]]) : 110 to 210/330 to 660
  • Max Magnetic Force (N) : 17000
  • Rated Ampere (A) : 9
  • Power (V) : Single Phase 200
  • Electricity Consumption (W) : 1800
  • Rated Time : 30minutes
  • Magnet power consumption (W) : 80
  • Twist drill : Max φ32
  • Power Cord Length : 5m
น้ำหนัก 30kg
ประเทศที่ผลิต Japan
ข้อมูลจากผู้ผลิต NITTO KOHKI ARA-100A 220-240V (CE) (ลิงค์นี้จะพาคุณไปสู่เว็บไซต์ภาษาญี่ปุ่น)
Brand Category NITTO KOHKI
Product Category เครื่องมือไฟฟ้า / ไฮดรอลิค / นิวเมติกส์ เครื่องมือไฟฟ้า เครื่องเจาะสว่านฐานแม่เหล็ก เครื่องเจาะสว่านฐานแม่เหล็ก
