ASK TECHNICA

FR4635-5K15A

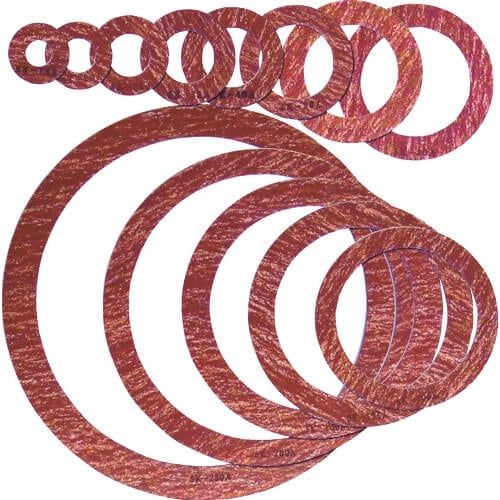

Ask Technica Joint Sheet No.4635

฿98
฿117
Brand ASK TECHNICA
Part Number FR4635-5K15A
JAN Code 4571163735345
Order Code 785-0581
Stock in Thai 0
Stock in Japan 0
Lead Time โปรดติดต่อเจ้าหน้าที่
วิธีการนำเข้า ทางแอร์
Last Updated กุมภาพันธ์ 21, 2024
  • The maximum operating temperature of the joint sheet flange packing is 350℃.
  • Because it has sufficient compressive strength, tightening similar to asbestos products is possible.
  • Gasket paste is unnecessary.
  • It is a joint sheet that does not contain asbestos.
  • It can be handled in the same way as conventional asbestos products.
  • By using a special heat-resistant binder, heat resistance is improved.
  • Can withstand sudden temperature and pressure changes.
  • High sealability can be maintained even under high pressure.
  • Because there is little sticking to the flange, execution time during gasket replacement can be shortened.
ข้อมูลสินค้า
  • Nominal Diameter (A) : 15
  • Nominal Diameter (B) : 1/2
  • Inner Diameter (mm) : 22
  • Outer Diameter (mm) : 50
  • Thickness (mm) : 2
  • Working Temperature Range : -40 to 350°C (saturated steam 250°C)
วัสดุ
  • Sheets which added NBR in the inorganic fibers and inorganic fillers with high heat resistance and rolled it
น้ำหนัก 6 g
การใช้งาน
  • For JIS flange packing
  • Water based fluid, oil based fluid, gas based fluid. (there are some fluids that can not be used such as hydrochloric acid and sodium hydroxide)
  • ประเทศที่ผลิต Japan
    ข้อมูลจากผู้ผลิต ASK TECHNICA FR4635-5K15A (ลิงค์นี้จะพาคุณไปสู่เว็บไซต์ภาษาญี่ปุ่น)
    Brand Category ASK TECHNICA
    Product Category ปั๊ม / วาล์ว / อุปกรณ์ก่อสร้าง อุปกรณ์ประปา ประเก็น ประเก็น
